pgui_create_tablechooser_dialog()

static void pgui_create_tablechooser_dialog ( )

static

Definition at line 2795 of file shp2pgsql-gui.c.

{
        GtkWidget *vbox_tree, *table_progress;
        GtkWidget *sw, *label;
        GtkTreeSelection *chooser_selection;

        /* Create the main top level window with a 10px border */
        dialog_tablechooser = gtk_dialog_new_with_buttons(_("Table selection"), GTK_WINDOW(window_main),
                                GTK_DIALOG_MODAL | GTK_DIALOG_DESTROY_WITH_PARENT, GTK_STOCK_OK, GTK_RESPONSE_OK, NULL);

        gtk_container_set_border_width(GTK_CONTAINER(dialog_tablechooser), 10);
        gtk_window_set_position(GTK_WINDOW(dialog_tablechooser), GTK_WIN_POS_CENTER);

        vbox_tree = gtk_dialog_get_content_area(GTK_DIALOG(dialog_tablechooser));

        /* Setup a model */
        chooser_table_list_store = gtk_list_store_new(TABLECHOOSER_N_COLUMNS,
                                         G_TYPE_STRING,
                                         G_TYPE_STRING,
                                         GTK_TYPE_TREE_MODEL,
                                         G_TYPE_STRING,
                                         G_TYPE_INT);

        /* Because we want to do selective filtering on the treeview content, we now implement a GtkTreeModel
           filter on top of the original tree model */
        chooser_filtered_table_list_store = (GtkListStore *)gtk_tree_model_filter_new(GTK_TREE_MODEL(chooser_table_list_store), NULL);
        gtk_tree_model_filter_set_visible_func(GTK_TREE_MODEL_FILTER(chooser_filtered_table_list_store),
                                        (GtkTreeModelFilterVisibleFunc)table_chooser_visibility_func, NULL, NULL);

        /* Create the view and such */
        chooser_tree = gtk_tree_view_new_with_model(GTK_TREE_MODEL(chooser_filtered_table_list_store));
        chooser_selection = gtk_tree_view_get_selection(GTK_TREE_VIEW(chooser_tree));
        gtk_tree_selection_set_mode(chooser_selection, GTK_SELECTION_MULTIPLE);

        /* Make the tree view in a scrollable window */
        sw = gtk_scrolled_window_new(NULL, NULL);
        gtk_scrolled_window_set_policy (GTK_SCROLLED_WINDOW(sw), GTK_POLICY_NEVER, GTK_POLICY_AUTOMATIC);
        gtk_scrolled_window_set_shadow_type (GTK_SCROLLED_WINDOW(sw), GTK_SHADOW_ETCHED_IN);
        gtk_widget_set_size_request(sw, 320, 240);

        gtk_box_pack_start(GTK_BOX(vbox_tree), sw, FALSE, FALSE, 10);
        gtk_container_add(GTK_CONTAINER(sw), chooser_tree);

        /* Schema Field */
        chooser_schema_renderer = gtk_cell_renderer_text_new();
        g_object_set(chooser_schema_renderer, "editable", TRUE, NULL);
        g_signal_connect(G_OBJECT(chooser_schema_renderer), "edited", G_CALLBACK(pgui_action_handle_loader_edit), NULL);
        chooser_schema_column = gtk_tree_view_column_new_with_attributes(_("Schema"),
                        chooser_schema_renderer,
                        "text",
                        TABLECHOOSER_SCHEMA_COLUMN,
                        NULL);
        g_object_set(chooser_schema_column, "resizable", TRUE, "sizing", GTK_TREE_VIEW_COLUMN_AUTOSIZE, NULL);
        gtk_tree_view_append_column(GTK_TREE_VIEW(chooser_tree), chooser_schema_column);

        /* Table Field */
        chooser_table_renderer = gtk_cell_renderer_text_new();
        g_object_set(chooser_table_renderer, "editable", FALSE, NULL);
        g_signal_connect(G_OBJECT(chooser_table_renderer), "edited", G_CALLBACK(pgui_action_handle_loader_edit), NULL);
        chooser_table_column = gtk_tree_view_column_new_with_attributes(_("Table"),
                       chooser_table_renderer,
                       "text",
                       TABLECHOOSER_TABLE_COLUMN,
                       NULL);
        g_object_set(chooser_table_column, "resizable", TRUE, "sizing", GTK_TREE_VIEW_COLUMN_AUTOSIZE, NULL);
        gtk_tree_view_append_column(GTK_TREE_VIEW(chooser_tree), chooser_table_column);

        /* Create table to hold the tick-box and text */
        table_progress = gtk_table_new(1, 2, FALSE);
        gtk_container_set_border_width (GTK_CONTAINER (table_progress), 0);
        gtk_table_set_row_spacings(GTK_TABLE(table_progress), 0);
        gtk_table_set_col_spacings(GTK_TABLE(table_progress), 0);

        checkbutton_chooser_geoonly = gtk_check_button_new();
        gtk_table_attach(GTK_TABLE(table_progress), checkbutton_chooser_geoonly, 0, 1, 0, 1, GTK_SHRINK, GTK_FILL, 0, 0);
        label = gtk_label_new(_("Only show tables with geo columns"));
        gtk_table_attach(GTK_TABLE(table_progress), label, 1, 2, 0, 1, GTK_FILL, GTK_FILL, 5, 0);
        g_signal_connect(G_OBJECT(checkbutton_chooser_geoonly), "toggled", G_CALLBACK(pgui_action_chooser_toggle_show_geocolumn), NULL);
        gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(checkbutton_chooser_geoonly), TRUE);

        /* Attach table to the vbox */
        gtk_box_pack_start(GTK_BOX(vbox_tree), table_progress, FALSE, FALSE, 10);

        return;
}

References _, checkbutton_chooser_geoonly, chooser_filtered_table_list_store, chooser_schema_column, chooser_schema_renderer, chooser_table_column, chooser_table_list_store, chooser_table_renderer, chooser_tree, dialog_tablechooser, FALSE, gtk_dialog_get_content_area, pgui_action_chooser_toggle_show_geocolumn(), pgui_action_handle_loader_edit(), table_chooser_visibility_func(), TABLECHOOSER_N_COLUMNS, TABLECHOOSER_SCHEMA_COLUMN, TABLECHOOSER_TABLE_COLUMN, TRUE, and window_main.

Referenced by main().

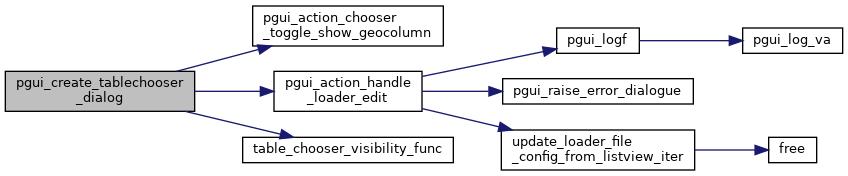

Here is the call graph for this function:

Here is the caller graph for this function:
