test_twkb_out_idlist()

static void test_twkb_out_idlist ( void  )

static

Definition at line 200 of file cu_out_twkb.c.

{
        int64_t idlist[2];

        idlist[0] = 2;
        idlist[1] = 4;
        cu_twkb_idlist("MULTIPOINT(1 1, 0 0)",idlist, 0, 0, 0, 0);
        // printf("TWKB: %s\n",s);
        // printf("WKT: %s\n",w);
        CU_ASSERT_STRING_EQUAL(s,"040402040802020101");
        CU_ASSERT_STRING_EQUAL(w,"MULTIPOINT(1 1,0 0)");

        /*
        04 06 multipoint, size/idlist
        07 size 7 bytes
        02 two geometries
        0408 idlist (2, 4)
        0202 first point @ 1,1
        0101 second point offset -1,-1
        */
        idlist[0] = 2;
        idlist[1] = 4;
        cu_twkb_idlist("MULTIPOINT(1 1, 0 0)",idlist, 0, 0, 0, TWKB_SIZE);
        // printf("TWKB: %s\n",s);
        // printf("WKT: %s\n",w);
        CU_ASSERT_STRING_EQUAL(s,"04060702040802020101");
        CU_ASSERT_STRING_EQUAL(w,"MULTIPOINT(1 1,0 0)");

        /*
        04 07 multipoint, bbox/size/idlist
        0B size 11 bytes
        00020002 bbox x(0,1), y(0,1)
        02 two geometries
        0408 idlist (2,4)
        0202 first point @ 1,1
        0101 seconds point offset -1,-1
        */
        idlist[0] = 2;
        idlist[1] = 4;
        cu_twkb_idlist("MULTIPOINT(1 1, 0 0)",idlist, 0, 0, 0, TWKB_SIZE | TWKB_BBOX);
        // printf("TWKB: %s\n",s);
        // printf("WKT: %s\n",w);
        CU_ASSERT_STRING_EQUAL(s,"04070B0002000202040802020101");
        CU_ASSERT_STRING_EQUAL(w,"MULTIPOINT(1 1,0 0)");

        /*
        0704 geometrycollection, idlist
        02 two geometries
        0408 idlist (2,4)
        01000202 first point (type, meta, x, y)
        01000000 second point (type, meta, x, y)
        */
        idlist[0] = 2;
        idlist[1] = 4;
        cu_twkb_idlist("GEOMETRYCOLLECTION(POINT(1 1),POINT(0 0))",idlist, 0, 0, 0, 0);
        // printf("TWKB: %s\n",s);
        CU_ASSERT_STRING_EQUAL(s,"07040204080100020201000000");
        CU_ASSERT_STRING_EQUAL(w,"GEOMETRYCOLLECTION(POINT(1 1),POINT(0 0))");

        /*
        0706 geometrycollection, size/idlist
        0D size, 13 bytes
        02 two geometries
        0408 idlist (2,4)
        0102020202 first point (type, meta, size, x, y)
        0102020000 second point (type, meta, size, x, y)
        */
        idlist[0] = 2;
        idlist[1] = 4;
        cu_twkb_idlist("GEOMETRYCOLLECTION(POINT(1 1),POINT(0 0))",idlist, 0, 0, 0, TWKB_SIZE);
        // printf("TWKB: %s\n",s);
        CU_ASSERT_STRING_EQUAL(s,"07060D02040801020202020102020000");
        CU_ASSERT_STRING_EQUAL(w,"GEOMETRYCOLLECTION(POINT(1 1),POINT(0 0))");

}

References cu_twkb_idlist(), s, TWKB_BBOX, TWKB_SIZE, and w.

Referenced by twkb_out_suite_setup().

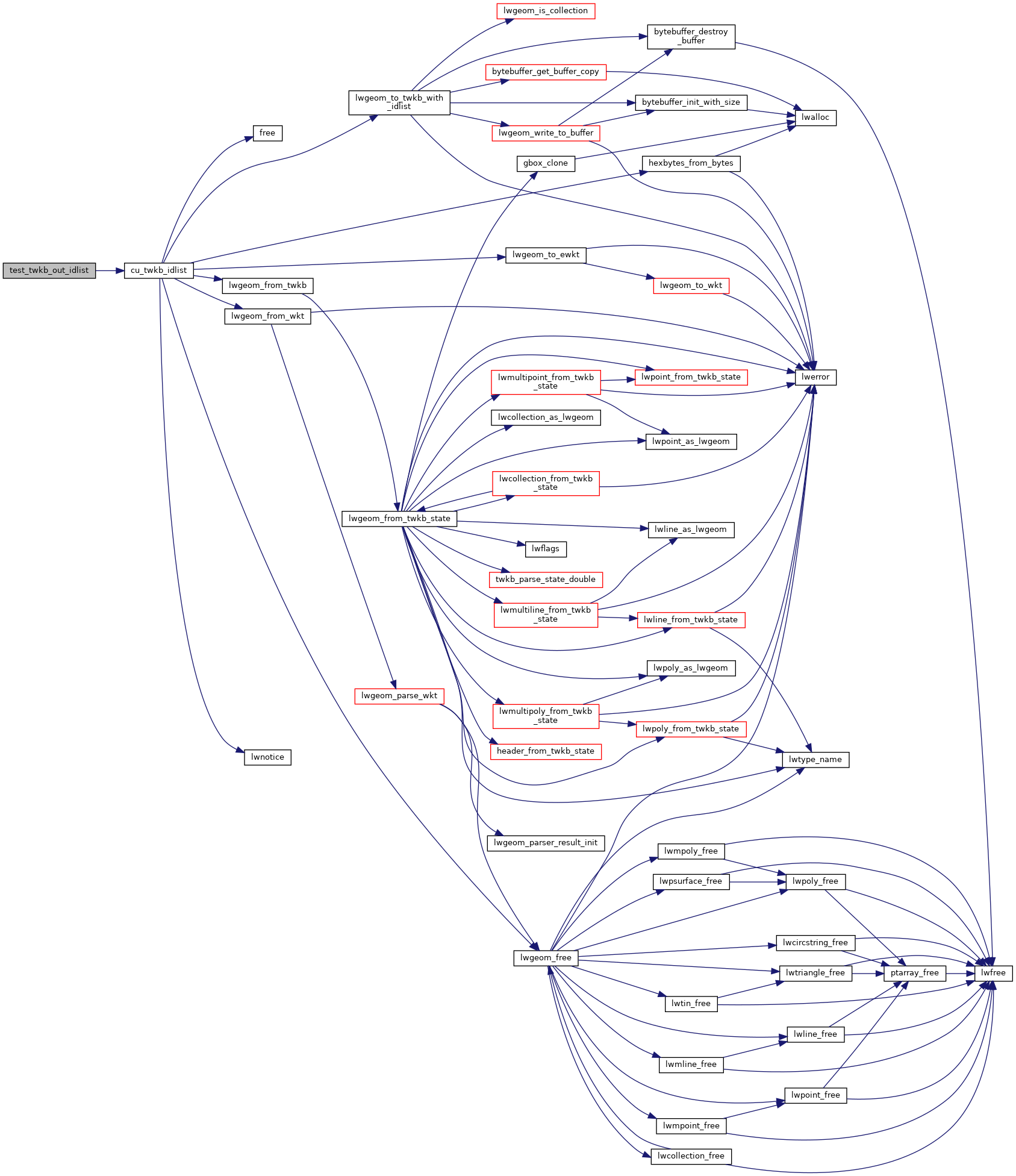

Here is the call graph for this function:

Here is the caller graph for this function:
