RASTER_dumpValues()

Datum RASTER_dumpValues

(

PG_FUNCTION_ARGS

)

Definition at line 203 of file rtpg_pixel.c.

{
        FuncCallContext *funcctx;
        TupleDesc tupdesc;
        int call_cntr;
        int max_calls;
        int i = 0;
        int x = 0;
        int y = 0;
        int z = 0;

        int16 typlen;
        bool typbyval;
        char typalign;

        rtpg_dumpvalues_arg arg1 = NULL;
        rtpg_dumpvalues_arg arg2 = NULL;

        /* stuff done only on the first call of the function */
        if (SRF_IS_FIRSTCALL()) {
                MemoryContext oldcontext;
                rt_pgraster *pgraster = NULL;
                rt_raster raster = NULL;
                rt_band band = NULL;
                int numbands = 0;
                int j = 0;
                bool exclude_nodata_value = TRUE;

                ArrayType *array;
                Oid etype;
                Datum *e;
                bool *nulls;

                double val = 0;
                int isnodata = 0;

                POSTGIS_RT_DEBUG(2, "RASTER_dumpValues first call");

                /* create a function context for cross-call persistence */
                funcctx = SRF_FIRSTCALL_INIT();

                /* switch to memory context appropriate for multiple function calls */
                oldcontext = MemoryContextSwitchTo(funcctx->multi_call_memory_ctx);

                /* Get input arguments */
                if (PG_ARGISNULL(0)) {
                        MemoryContextSwitchTo(oldcontext);
                        SRF_RETURN_DONE(funcctx);
                }
                pgraster = (rt_pgraster *) PG_DETOAST_DATUM(PG_GETARG_DATUM(0));

                raster = rt_raster_deserialize(pgraster, FALSE);
                if (!raster) {
                        PG_FREE_IF_COPY(pgraster, 0);
                        ereport(ERROR, (
                                errcode(ERRCODE_OUT_OF_MEMORY),
                                errmsg("Could not deserialize raster")
                        ));
                        MemoryContextSwitchTo(oldcontext);
                        SRF_RETURN_DONE(funcctx);
                }

                /* check that raster is not empty */
                /*
                if (rt_raster_is_empty(raster)) {
                        elog(NOTICE, "Raster provided is empty");
                        rt_raster_destroy(raster);
                        PG_FREE_IF_COPY(pgraster, 0);
                        MemoryContextSwitchTo(oldcontext);
                        SRF_RETURN_DONE(funcctx);
                }
                */

                /* raster has bands */
                numbands = rt_raster_get_num_bands(raster);
                if (!numbands) {
                        elog(NOTICE, "Raster provided has no bands");
                        rt_raster_destroy(raster);
                        PG_FREE_IF_COPY(pgraster, 0);
                        MemoryContextSwitchTo(oldcontext);
                        SRF_RETURN_DONE(funcctx);
                }

                /* initialize arg1 */
                arg1 = rtpg_dumpvalues_arg_init();
                if (arg1 == NULL) {
                        rt_raster_destroy(raster);
                        PG_FREE_IF_COPY(pgraster, 0);
                        MemoryContextSwitchTo(oldcontext);
                        elog(ERROR, "RASTER_dumpValues: Could not initialize argument structure");
                        SRF_RETURN_DONE(funcctx);
                }

                /* nband, array */
                if (!PG_ARGISNULL(1)) {
                        array = PG_GETARG_ARRAYTYPE_P(1);
                        etype = ARR_ELEMTYPE(array);
                        get_typlenbyvalalign(etype, &typlen, &typbyval, &typalign);

                        switch (etype) {
                                case INT2OID:
                                case INT4OID:
                                        break;
                                default:
                                        rtpg_dumpvalues_arg_destroy(arg1);
                                        rt_raster_destroy(raster);
                                        PG_FREE_IF_COPY(pgraster, 0);
                                        MemoryContextSwitchTo(oldcontext);
                                        elog(ERROR, "RASTER_dumpValues: Invalid data type for band indexes");
                                        SRF_RETURN_DONE(funcctx);
                                        break;
                        }

                        deconstruct_array(array, etype, typlen, typbyval, typalign, &e, &nulls, &(arg1->numbands));

                        arg1->nbands = palloc(sizeof(int) * arg1->numbands);
                        if (arg1->nbands == NULL) {
                                rtpg_dumpvalues_arg_destroy(arg1);
                                rt_raster_destroy(raster);
                                PG_FREE_IF_COPY(pgraster, 0);
                                MemoryContextSwitchTo(oldcontext);
                                elog(ERROR, "RASTER_dumpValues: Could not allocate memory for band indexes");
                                SRF_RETURN_DONE(funcctx);
                        }

                        for (i = 0, j = 0; i < arg1->numbands; i++) {
                                if (nulls[i]) continue;

                                switch (etype) {
                                        case INT2OID:
                                                arg1->nbands[j] = DatumGetInt16(e[i]) - 1;
                                                break;
                                        case INT4OID:
                                                arg1->nbands[j] = DatumGetInt32(e[i]) - 1;
                                                break;
                                }

                                j++;
                        }

                        if (j < arg1->numbands) {
                                arg1->nbands = repalloc(arg1->nbands, sizeof(int) * j);
                                if (arg1->nbands == NULL) {
                                        rtpg_dumpvalues_arg_destroy(arg1);
                                        rt_raster_destroy(raster);
                                        PG_FREE_IF_COPY(pgraster, 0);
                                        MemoryContextSwitchTo(oldcontext);
                                        elog(ERROR, "RASTER_dumpValues: Could not reallocate memory for band indexes");
                                        SRF_RETURN_DONE(funcctx);
                                }

                                arg1->numbands = j;
                        }

                        /* validate nbands */
                        for (i = 0; i < arg1->numbands; i++) {
                                if (!rt_raster_has_band(raster, arg1->nbands[i])) {
                                        elog(NOTICE, "Band at index %d not found in raster", arg1->nbands[i] + 1);
                                        rtpg_dumpvalues_arg_destroy(arg1);
                                        rt_raster_destroy(raster);
                                        PG_FREE_IF_COPY(pgraster, 0);
                                        MemoryContextSwitchTo(oldcontext);
                                        SRF_RETURN_DONE(funcctx);
                                }
                        }

                }
                /* no bands specified, return all bands */
                else {
                        arg1->numbands = numbands;
                        arg1->nbands = palloc(sizeof(int) * arg1->numbands);

                        if (arg1->nbands == NULL) {
                                rtpg_dumpvalues_arg_destroy(arg1);
                                rt_raster_destroy(raster);
                                PG_FREE_IF_COPY(pgraster, 0);
                                MemoryContextSwitchTo(oldcontext);
                                elog(ERROR, "RASTER_dumpValues: Could not allocate memory for band indexes");
                                SRF_RETURN_DONE(funcctx);
                        }

                        for (i = 0; i < arg1->numbands; i++) {
                                arg1->nbands[i] = i;
                                POSTGIS_RT_DEBUGF(4, "arg1->nbands[%d] = %d", arg1->nbands[i], i);
                        }
                }

                arg1->rows = rt_raster_get_height(raster);
                arg1->columns = rt_raster_get_width(raster);

                /* exclude_nodata_value */
                if (!PG_ARGISNULL(2))
                        exclude_nodata_value = PG_GETARG_BOOL(2);
                POSTGIS_RT_DEBUGF(4, "exclude_nodata_value = %d", exclude_nodata_value);

                /* allocate memory for each band's values and nodata flags */
                arg1->values = palloc(sizeof(Datum *) * arg1->numbands);
                arg1->nodata = palloc(sizeof(bool *) * arg1->numbands);
                if (arg1->values == NULL || arg1->nodata == NULL) {
                        rtpg_dumpvalues_arg_destroy(arg1);
                        rt_raster_destroy(raster);
                        PG_FREE_IF_COPY(pgraster, 0);
                        MemoryContextSwitchTo(oldcontext);
                        elog(ERROR, "RASTER_dumpValues: Could not allocate memory for pixel values");
                        SRF_RETURN_DONE(funcctx);
                }
                memset(arg1->values, 0, sizeof(Datum *) * arg1->numbands);
                memset(arg1->nodata, 0, sizeof(bool *) * arg1->numbands);

                /* get each band and dump data */
                for (z = 0; z < arg1->numbands; z++) {
                        /* shortcut if raster is empty */
                        if (rt_raster_is_empty(raster))
                                break;

                        band = rt_raster_get_band(raster, arg1->nbands[z]);
                        if (!band) {
                                int nband = arg1->nbands[z] + 1;
                                rtpg_dumpvalues_arg_destroy(arg1);
                                rt_raster_destroy(raster);
                                PG_FREE_IF_COPY(pgraster, 0);
                                MemoryContextSwitchTo(oldcontext);
                                elog(ERROR, "RASTER_dumpValues: Could not get band at index %d", nband);
                                SRF_RETURN_DONE(funcctx);
                        }

                        /* allocate memory for values and nodata flags */
                        arg1->values[z] = palloc(sizeof(Datum) * arg1->rows * arg1->columns);
                        arg1->nodata[z] = palloc(sizeof(bool) * arg1->rows * arg1->columns);
                        if (arg1->values[z] == NULL || arg1->nodata[z] == NULL) {
                                rtpg_dumpvalues_arg_destroy(arg1);
                                rt_raster_destroy(raster);
                                PG_FREE_IF_COPY(pgraster, 0);
                                MemoryContextSwitchTo(oldcontext);
                                elog(ERROR, "RASTER_dumpValues: Could not allocate memory for pixel values");
                                SRF_RETURN_DONE(funcctx);
                        }
                        memset(arg1->values[z], 0, sizeof(Datum) * arg1->rows * arg1->columns);
                        memset(arg1->nodata[z], 0, sizeof(bool) * arg1->rows * arg1->columns);

                        i = 0;

                        /* shortcut if band is NODATA */
                        if (rt_band_get_isnodata_flag(band)) {
                                for (i = (arg1->rows * arg1->columns) - 1; i >= 0; i--)
                                        arg1->nodata[z][i] = TRUE;
                                continue;
                        }

                        for (y = 0; y < arg1->rows; y++) {
                                for (x = 0; x < arg1->columns; x++) {
                                        /* get pixel */
                                        if (rt_band_get_pixel(band, x, y, &val, &isnodata) != ES_NONE) {
                                                int nband = arg1->nbands[z] + 1;
                                                rtpg_dumpvalues_arg_destroy(arg1);
                                                rt_raster_destroy(raster);
                                                PG_FREE_IF_COPY(pgraster, 0);
                                                MemoryContextSwitchTo(oldcontext);
                                                elog(ERROR, "RASTER_dumpValues: Could not pixel (%d, %d) of band %d", x, y, nband);
                                                SRF_RETURN_DONE(funcctx);
                                        }

                                        arg1->values[z][i] = Float8GetDatum(val);
                                        POSTGIS_RT_DEBUGF(5, "arg1->values[z][i] = %f", DatumGetFloat8(arg1->values[z][i]));
                                        POSTGIS_RT_DEBUGF(5, "clamped is?: %d", rt_band_clamped_value_is_nodata(band, val));

                                        if (exclude_nodata_value && isnodata) {
                                                arg1->nodata[z][i] = TRUE;
                                                POSTGIS_RT_DEBUG(5, "nodata = 1");
                                        }
                                        else
                                                POSTGIS_RT_DEBUG(5, "nodata = 0");

                                        i++;
                                }
                        }
                }

                /* cleanup */
                rt_raster_destroy(raster);
                PG_FREE_IF_COPY(pgraster, 0);

                /* Store needed information */
                funcctx->user_fctx = arg1;

                /* total number of tuples to be returned */
                funcctx->max_calls = arg1->numbands;

                /* Build a tuple descriptor for our result type */
                if (get_call_result_type(fcinfo, NULL, &tupdesc) != TYPEFUNC_COMPOSITE) {
                        MemoryContextSwitchTo(oldcontext);
                        ereport(ERROR, (
                                errcode(ERRCODE_FEATURE_NOT_SUPPORTED),
                                errmsg(
                                        "function returning record called in context "
                                        "that cannot accept type record"
                                )
                        ));
                }

                BlessTupleDesc(tupdesc);
                funcctx->tuple_desc = tupdesc;

                MemoryContextSwitchTo(oldcontext);
        }

        /* stuff done on every call of the function */
        funcctx = SRF_PERCALL_SETUP();

        call_cntr = funcctx->call_cntr;
        max_calls = funcctx->max_calls;
        tupdesc = funcctx->tuple_desc;
        arg2 = funcctx->user_fctx;

        /* do when there is more left to send */
        if (call_cntr < max_calls) {
                Datum values[VALUES_LENGTH];
                bool nulls[VALUES_LENGTH];
                HeapTuple tuple;
                Datum result;
                ArrayType *mdValues = NULL;
                int ndim = 2;
                int dim[2] = {arg2->rows, arg2->columns};
                int lbound[2] = {1, 1};

                POSTGIS_RT_DEBUGF(3, "call number %d", call_cntr);
                POSTGIS_RT_DEBUGF(4, "dim = %d, %d", dim[0], dim[1]);

                memset(nulls, FALSE, sizeof(bool) * VALUES_LENGTH);

                values[0] = Int32GetDatum(arg2->nbands[call_cntr] + 1);

                /* info about the type of item in the multi-dimensional array (float8). */
                get_typlenbyvalalign(FLOAT8OID, &typlen, &typbyval, &typalign);

                /* if values is NULL, return empty array */
                if (arg2->values[call_cntr] == NULL)
                        ndim = 0;

                /* assemble 3-dimension array of values */
                mdValues = construct_md_array(
                        arg2->values[call_cntr], arg2->nodata[call_cntr],
                        ndim, dim, lbound,
                        FLOAT8OID,
                        typlen, typbyval, typalign
                );
                values[1] = PointerGetDatum(mdValues);

                /* build a tuple and datum */
                tuple = heap_form_tuple(tupdesc, values, nulls);
                result = HeapTupleGetDatum(tuple);

                SRF_RETURN_NEXT(funcctx, result);
        }
        /* do when there is no more left */
        else {
                rtpg_dumpvalues_arg_destroy(arg2);
                SRF_RETURN_DONE(funcctx);
        }
}

References rtpg_dumpvalues_arg_t::columns, ES_NONE, FALSE, rtpg_dumpvalues_arg_t::nbands, rtpg_dumpvalues_arg_t::nodata, rtpg_dumpvalues_arg_t::numbands, POSTGIS_RT_DEBUG, POSTGIS_RT_DEBUGF, rtpg_dumpvalues_arg_t::rows, rt_band_clamped_value_is_nodata(), rt_band_get_isnodata_flag(), rt_band_get_pixel(), rt_raster_deserialize(), rt_raster_destroy(), rt_raster_get_band(), rt_raster_get_height(), rt_raster_get_num_bands(), rt_raster_get_width(), rt_raster_has_band(), rt_raster_is_empty(), rtpg_dumpvalues_arg_destroy(), rtpg_dumpvalues_arg_init(), TRUE, rtpg_dumpvalues_arg_t::values, and VALUES_LENGTH.

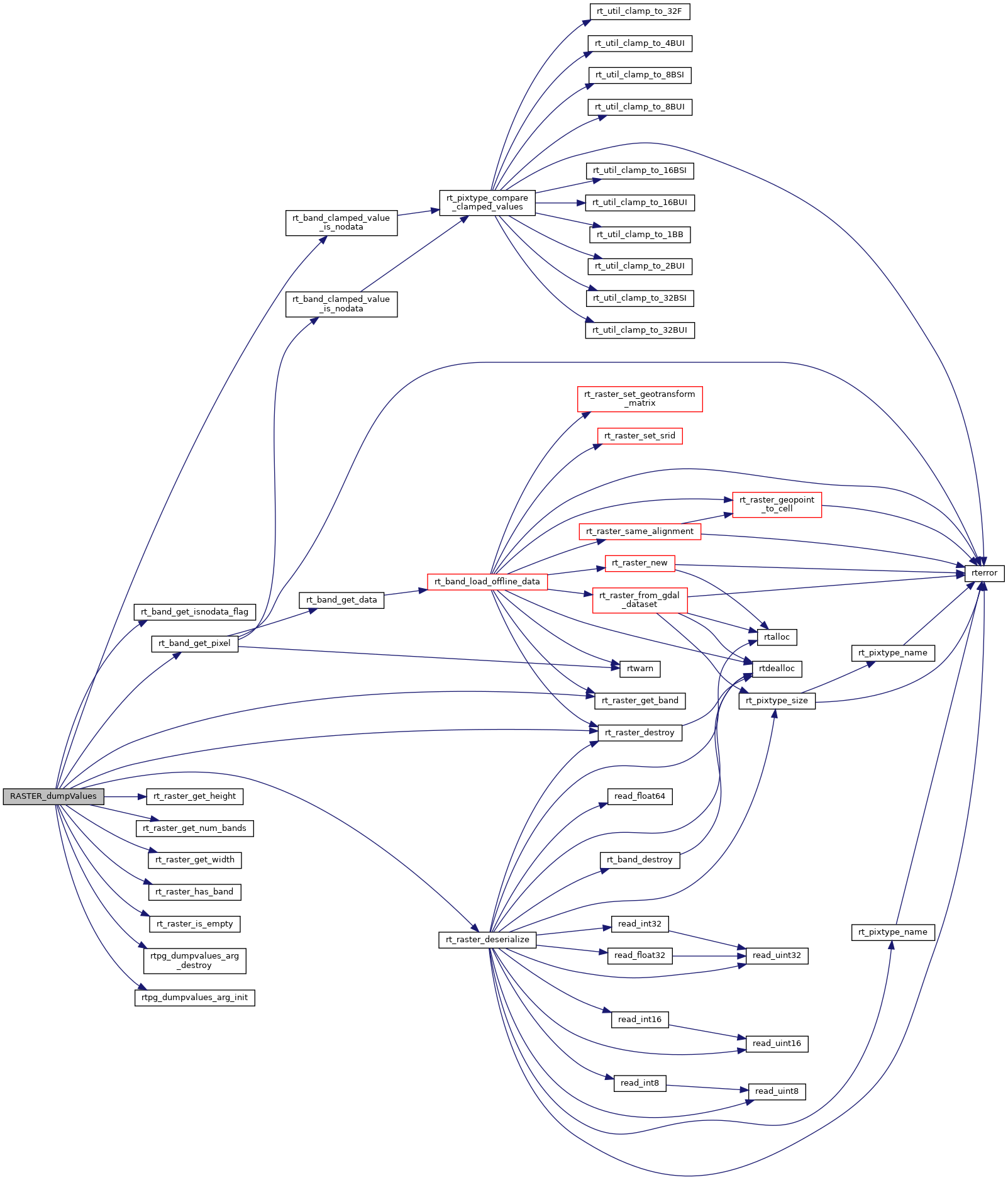

Here is the call graph for this function:
