out_kml_test_geoms()

static void out_kml_test_geoms ( void  )

static

Definition at line 127 of file cu_out_kml.c.

{
        /* Linestring */
        do_kml_test(
            "LINESTRING(0 1,2 3,4 5)",
            "<LineString><coordinates>0,1 2,3 4,5</coordinates></LineString>",
            0);

        /* Polygon */
        do_kml_test(
            "POLYGON((0 1,2 3,4 5,0 1))",
            "<Polygon><outerBoundaryIs><LinearRing><coordinates>0,1 2,3 4,5 0,1</coordinates></LinearRing></outerBoundaryIs></Polygon>",
            0);

        /* Polygon - with internal ring */
        do_kml_test(
            "POLYGON((0 1,2 3,4 5,0 1),(6 7,8 9,10 11,6 7))",
            "<Polygon><outerBoundaryIs><LinearRing><coordinates>0,1 2,3 4,5 0,1</coordinates></LinearRing></outerBoundaryIs><innerBoundaryIs><LinearRing><coordinates>6,7 8,9 10,11 6,7</coordinates></LinearRing></innerBoundaryIs></Polygon>",
            0);

        /* MultiPoint */
        do_kml_test(
            "MULTIPOINT(0 1,2 3)",
            "<MultiGeometry><Point><coordinates>0,1</coordinates></Point><Point><coordinates>2,3</coordinates></Point></MultiGeometry>",
            0);

        /* MultiLine */
        do_kml_test(
            "MULTILINESTRING((0 1,2 3,4 5),(6 7,8 9,10 11))",
            "<MultiGeometry><LineString><coordinates>0,1 2,3 4,5</coordinates></LineString><LineString><coordinates>6,7 8,9 10,11</coordinates></LineString></MultiGeometry>",
            0);

        /* MultiPolygon */
        do_kml_test(
            "MULTIPOLYGON(((0 1,2 3,4 5,0 1)),((6 7,8 9,10 11,6 7)))",
            "<MultiGeometry><Polygon><outerBoundaryIs><LinearRing><coordinates>0,1 2,3 4,5 0,1</coordinates></LinearRing></outerBoundaryIs></Polygon><Polygon><outerBoundaryIs><LinearRing><coordinates>6,7 8,9 10,11 6,7</coordinates></LinearRing></outerBoundaryIs></Polygon></MultiGeometry>",
            0);

        /* GeometryCollection */
        do_kml_unsupported(
            "GEOMETRYCOLLECTION(POINT(0 1))",
            "lwgeom_to_kml2: 'GeometryCollection' geometry type not supported");

        /* CircularString */
        do_kml_unsupported(
            "CIRCULARSTRING(-2 0,0 2,2 0,0 2,2 4)",
            "lwgeom_to_kml2: 'CircularString' geometry type not supported");

        /* CompoundCurve */
        do_kml_unsupported(
            "COMPOUNDCURVE(CIRCULARSTRING(0 0,1 1,1 0),(1 0,0 1))",
            "lwgeom_to_kml2: 'CompoundCurve' geometry type not supported");

        /* CurvePolygon */
        do_kml_unsupported(
            "CURVEPOLYGON(CIRCULARSTRING(-2 0,-1 -1,0 0,1 -1,2 0,0 2,-2 0),(-1 0,0 0.5,1 0,0 1,-1 0))",
            "lwgeom_to_kml2: 'CurvePolygon' geometry type not supported");

        /* MultiCurve */
        do_kml_unsupported(
            "MULTICURVE((5 5,3 5,3 3,0 3),CIRCULARSTRING(0 0,2 1,2 2))",
            "lwgeom_to_kml2: 'MultiCurve' geometry type not supported");

        /* MultiSurface */
        do_kml_unsupported(
            "MULTISURFACE(CURVEPOLYGON(CIRCULARSTRING(-2 0,-1 -1,0 0,1 -1,2 0,0 2,-2 0),(-1 0,0 0.5,1 0,0 1,-1 0)),((7 8,10 10,6 14,4 11,7 8)))",
            "lwgeom_to_kml2: 'MultiSurface' geometry type not supported");
}

References do_kml_test(), and do_kml_unsupported().

Referenced by out_kml_suite_setup().

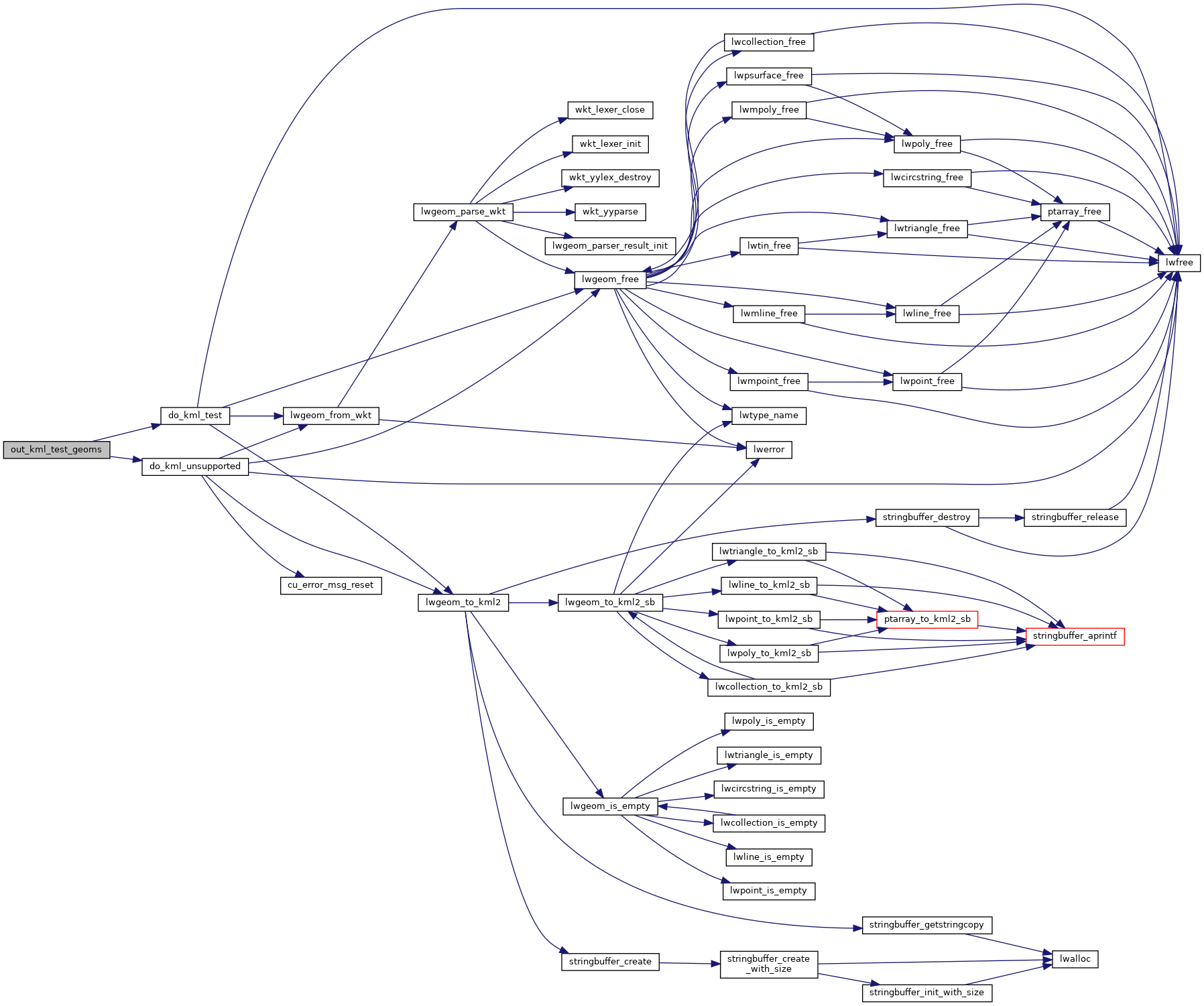

Here is the call graph for this function:

Here is the caller graph for this function:
