◆ union_dbscan_minpoints_1()

static int union_dbscan_minpoints_1 ( LWGEOM **  geoms,
uint32_t  num_geoms,
UNIONFIND uf,
double  eps,
char **  in_a_cluster_ret
)
static

Definition at line 318 of file lwgeom_geos_cluster.c.

319{
320 uint32_t p, i;
321 struct STRTree tree;
322 struct QueryContext cxt =
323 {
324 .items_found = NULL,
325 .num_items_found = 0,
326 .items_found_size = 0
327 };
328 int success = LW_SUCCESS;
329
330 if (in_a_cluster_ret)
331 {
332 char* in_a_cluster = lwalloc(num_geoms * sizeof(char));
333 for (i = 0; i < num_geoms; i++)
334 in_a_cluster[i] = LW_TRUE;
335 *in_a_cluster_ret = in_a_cluster;
336 }
337
338 if (num_geoms <= 1)
339 return LW_SUCCESS;
340
341 tree = make_strtree((void**) geoms, num_geoms, LW_TRUE);
342 if (tree.tree == NULL)
343 {
344 destroy_strtree(&tree);
345 return LW_FAILURE;
346 }
347
348 for (p = 0; p < num_geoms; p++)
349 {
350 if (lwgeom_is_empty(geoms[p]))
351 continue;
352
353 dbscan_update_context(tree.tree, &cxt, geoms, p, eps);
354 for (i = 0; i < cxt.num_items_found; i++)
355 {
356 uint32_t q = *((uint32_t*) cxt.items_found[i]);
357
358 if (UF_find(uf, p) != UF_find(uf, q))
359 {
360 double mindist = lwgeom_mindistance2d_tolerance(geoms[p], geoms[q], eps);
361 if (mindist == FLT_MAX)
362 {
363 success = LW_FAILURE;
364 break;
365 }
366
367 if (mindist <= eps)
368 UF_union(uf, p, q);
369 }
370 }
371 }
372
373 if (cxt.items_found)
374 lwfree(cxt.items_found);
375
376 destroy_strtree(&tree);
377
378 return success;
379}
#define LW_FAILURE
Definition liblwgeom.h:110
#define LW_SUCCESS
Definition liblwgeom.h:111
void * lwalloc(size_t size)
Definition lwutil.c:227
void lwfree(void *mem)
Definition lwutil.c:242
double lwgeom_mindistance2d_tolerance(const LWGEOM *lw1, const LWGEOM *lw2, double tolerance)
Function handling min distance calculations and dwithin calculations.
Definition measures.c:207
#define LW_TRUE
Return types for functions with status returns.
Definition liblwgeom.h:107
static int dbscan_update_context(GEOSSTRtree *tree, struct QueryContext *cxt, LWGEOM **geoms, uint32_t p, double eps)
static struct STRTree make_strtree(void **geoms, uint32_t num_geoms, char is_lwgeom)
Make a GEOSSTRtree that stores a pointer to a variable containing the array index of the input geoms.
static void destroy_strtree(struct STRTree *tree)
Clean up STRTree after use.
static int lwgeom_is_empty(const LWGEOM *geom)
Return true or false depending on whether a geometry is an "empty" geometry (no vertices members)
Definition lwinline.h:193
uint32_t UF_find(UNIONFIND *uf, uint32_t i)
Definition lwunionfind.c:62
void UF_union(UNIONFIND *uf, uint32_t i, uint32_t j)
Definition lwunionfind.c:85
GEOSSTRtree * tree

References dbscan_update_context(), destroy_strtree(), QueryContext::items_found, LW_FAILURE, LW_SUCCESS, LW_TRUE, lwalloc(), lwfree(), lwgeom_is_empty(), lwgeom_mindistance2d_tolerance(), make_strtree(), QueryContext::num_items_found, STRTree::tree, UF_find(), and UF_union().

Referenced by union_dbscan().

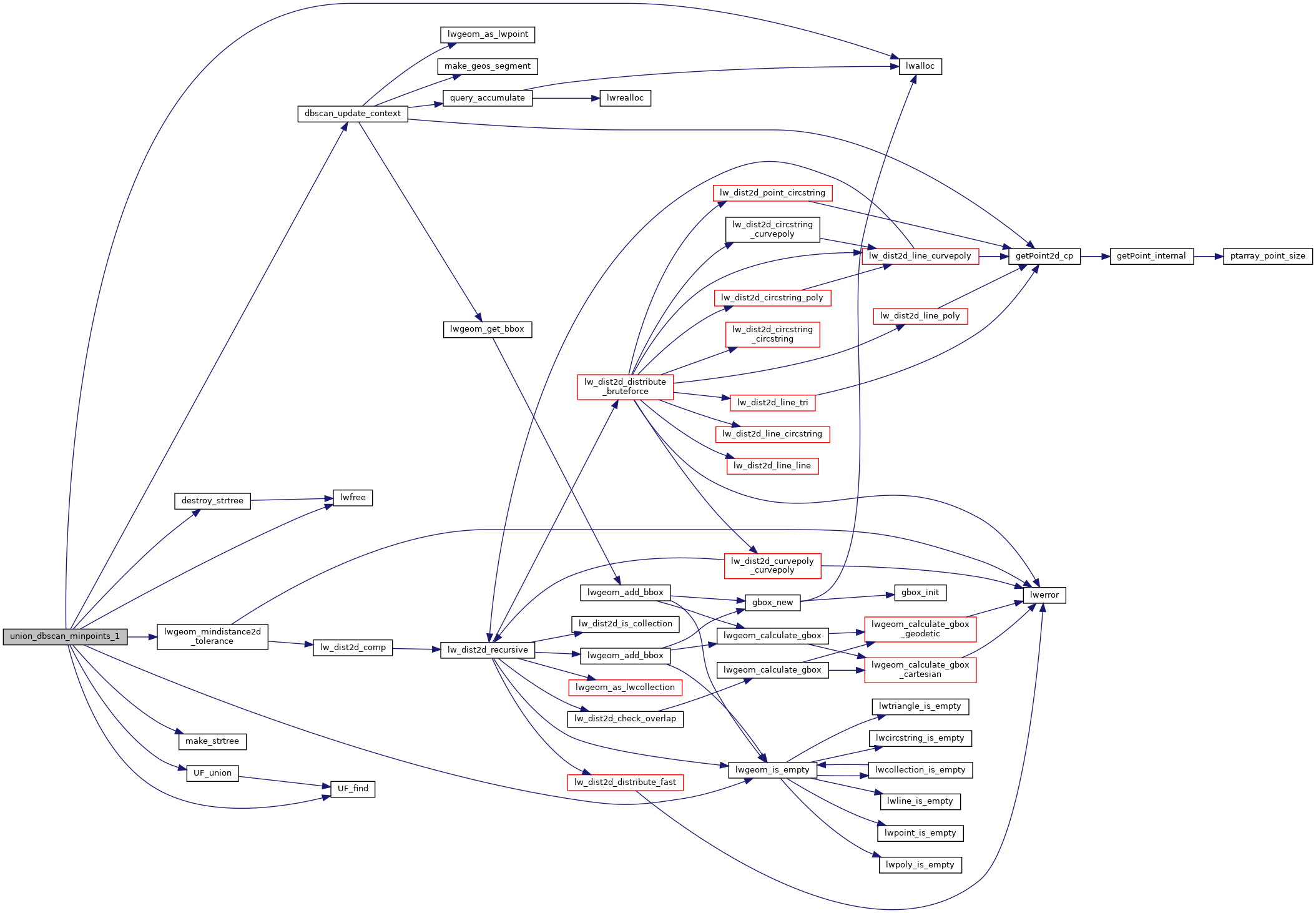

Here is the call graph for this function:

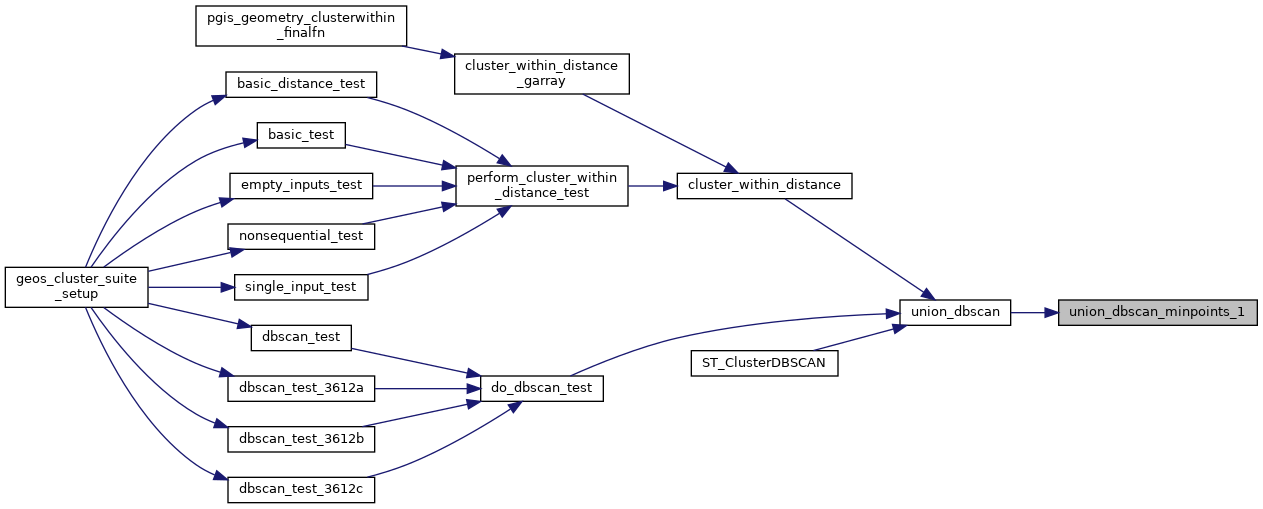

Here is the caller graph for this function:
