◆ test_tree_circ_pip()
|
static |
Definition at line 47 of file cu_tree.c.
48{
49 LWLINE *g;
50 CIRC_NODE *c;
51 POINT2D pt, pt_outside;
52 int rv, on_boundary;
53
54 pt.x = 0.0;
55 pt.y = 0.0;
56 pt_outside.x = -2.0;
57 pt_outside.y = 0.0;
58
59 /* Point in square */
60 g = lwgeom_as_lwline(lwgeom_from_wkt("LINESTRING(-1 -1,1 -1,1 1,-1 1,-1 -1)", LW_PARSER_CHECK_NONE));
62 rv = circ_tree_contains_point(c, &pt, &pt_outside, 0, &on_boundary);
63 CU_ASSERT_EQUAL(rv, 1);
64
65 /* Point on other side of square */
66 pt.x = 2.0;
67 pt.y = 0.0;
68 rv = circ_tree_contains_point(c, &pt, &pt_outside, 0, &on_boundary);
69 CU_ASSERT_EQUAL(rv, 0);
70
71 /* Clean and do new shape */
72 circ_tree_free(c);
73 lwline_free(g);
74
75 /* Point in square, stab passing through vertex */
76 pt.x = 0.0;
77 pt.y = 0.0;
78 g = lwgeom_as_lwline(lwgeom_from_wkt("LINESTRING(-1 -1,0 -1,1 -1,1 0,1 1,0 1,-1 1,-1 0,-1 -1)", LW_PARSER_CHECK_NONE));
80 //circ_tree_print(c, 0);
81 rv = circ_tree_contains_point(c, &pt, &pt_outside, 0, &on_boundary);
82 CU_ASSERT_EQUAL(rv, 1);
83
84 /* Point on other side of square, stab passing through vertex */
85 pt.x = 2.0;
86 pt.y = 0.0;
87 rv = circ_tree_contains_point(c, &pt, &pt_outside, 0, &on_boundary);
88 CU_ASSERT_EQUAL(rv, 0);
89
90 /* Clean and do new shape */
91 circ_tree_free(c);
92 lwline_free(g);
93
94 /* Point outside "w" thing, stab passing through vertexes and grazing pointy thing */
95 pt.x = 2.0;
96 pt.y = 0.0;
97 g = lwgeom_as_lwline(lwgeom_from_wkt("LINESTRING(-1 -1,0 -1,1 -1,1 0,1 1,0 0,-1 1,-1 0,-1 -1)", LW_PARSER_CHECK_NONE));
99 //circ_tree_print(c, 0);
100 rv = circ_tree_contains_point(c, &pt, &pt_outside, 0, &on_boundary);
101 //printf("rv %d\n", rv);
102 CU_ASSERT_EQUAL(rv, 0);
103
104 /* Point inside "w" thing, stab passing through vertexes and grazing pointy thing */
105 pt.x = 0.8;
106 pt.y = 0.0;
107 rv = circ_tree_contains_point(c, &pt, &pt_outside, 0, &on_boundary);
108 //printf("rv %d\n", rv);
109 CU_ASSERT_EQUAL(rv, 1);
110
111 /* Clean and do new shape */
112 circ_tree_free(c);
113 lwline_free(g);
114
115}
void circ_tree_free(CIRC_NODE *node)
Recurse from top of node tree and free all children.
Definition lwgeodetic_tree.c:50
CIRC_NODE * circ_tree_new(const POINTARRAY *pa)
Build a tree of nodes from a point array, one node per edge.
Definition lwgeodetic_tree.c:355
int circ_tree_contains_point(const CIRC_NODE *node, const POINT2D *pt, const POINT2D *pt_outside, int level, int *on_boundary)
Walk the tree and count intersections between the stab line and the edges.
Definition lwgeodetic_tree.c:495
Definition liblwgeom.h:467
Definition liblwgeom.h:375
Note that p1 and p2 are pointers into an independent POINTARRAY, do not free them.
Definition lwgeodetic_tree.h:37
References circ_tree_contains_point(), circ_tree_free(), circ_tree_new(), LW_PARSER_CHECK_NONE, lwgeom_as_lwline(), lwgeom_from_wkt(), lwline_free(), LWLINE::points, POINT2D::x, and POINT2D::y.
Referenced by tree_suite_setup().

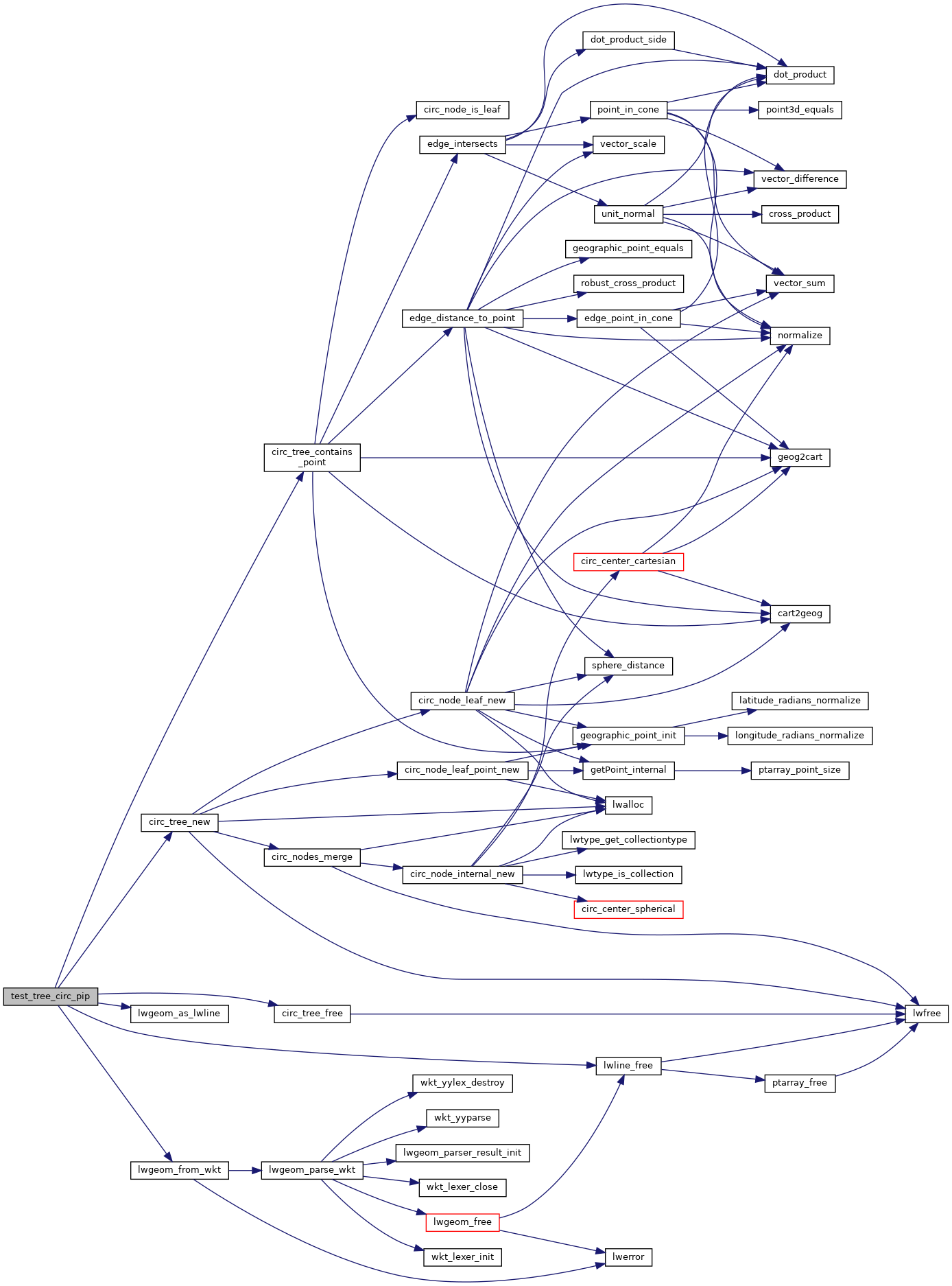

Here is the call graph for this function:
Here is the caller graph for this function:
